Electronic lock with bluetooth and MiFare proximity. TG-H210 electronic lock stands out for its slim design with narrow escutcheons that give the door and the room a plus of style and elegance.

Features:

• Unique, simple-to-install and retrofit design
• Suitable for small to very large -scale hotels
• Vandalism and attack resistant
• CE certified and 68 mints fire rated
• Escutcheon with adaptable handle, for doors of left or right opening
• PVD (Phase Vapour Deposition) lacquered colors, with greater resistance to abrasion and corrosion
• Material: stainless steel / Aluminium
• High security Euro standard Mortise
• Hidden mechanical cylinder for auditable emergency openings
• Anti panic function
• ADA Complaint
• Option to open and manage by mobile App by installing BLE module
• Option to open and manage online by installing Gateways.
• Audit trail for last 4000 openings
• NFC programming
• Works with TRUGen Access management software

Technical Parameters:

Unlock ways: RFID Mifare card + mechanical key
Power supply: 4 x1.5V AA batteries
Battery life: >30000 times
Static current: < 20 uA
Dynamic current: <150 mA
Working temperature: -20 – + 58 °C
Working humidity: 10-60% RH
Detection distance: 0-5cm
Frequency: Mifare13.56 Mhz
Door Thickness: 38-65mm
Low voltage alarm critical point: 4.8V

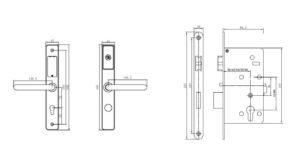

Dimensions
