TRUGen Access control systems allow you to control the main entrances without surveillance, common zones, swimming pools, spas, garages and any other zone with access restrictions where the electronic lock is not applicable. Its size and design allow it to be integrated into any hotel environment, and control both main doors and areas with restricted access to guests. TG-W55 is the ideal solution for those common areas of the hotel, special or restricted, where the installation of an electronic lock is not possible.

Features:

• Wall reader access control, with Mifare proximity opening
• Access control designed for indoor or outdoor use
• Both the MiFare card reader and the control unit have been integrated into a single
  device, creating an easily to install unit.
• Controls the access of room doors equipped with an electromagnetic lock or electric
  strike, instead of a traditional electronic hotel lock.
• Vandal proof
• Anti-humidity rubber gasket included to be used in those zones that need it.
• Compatible with TRUGen Access management software

Technical Parameters:

Unlock ways: RFID Mifare card
Power supply: 12V DC
Current: 100mA
Working Temperature: -10 ~ 70℃
Humidity: 20% ~ 90% RH
Detecting distance: 20~50mm
Relay: 1 output
Audit trail of the last 2000 events registered.
Frequency: Mifare13.56 Mhz

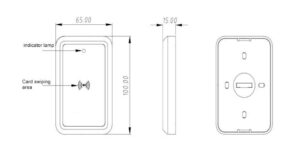

Dimension: 100 x 65 x 15 mm

Dimension:
